Research Paper Review: Automated Design of Agentic Systems šŸš€šŸ¤–

Explore the automated design of agentic systems using meta-agents that iteratively refine AI agents for optimized performance across diverse tasks. Learn about the architecture, process, and implications of this cutting-edge research.

8/20/20246 min read

a man in a suit and tie holding a plaque
a man in a suit and tie holding a plaque

Agentic systems refer to AI-driven entities that can act autonomously to perform tasks. These agents are often designed to handle specific functions like data processing, decision-making, or interaction with environments.

Traditionally, creating these systems requires extensive manual design, testing, and refinement. However, this paper proposes an automated process that significantly reduces human intervention and accelerates the creation of these systems.

The Meta-Agent Approach At the core of this research is the concept of the meta-agent. A meta-agent is a higher-level agent responsible for designing and improving other agents. The meta-agent operates by coding these agents, running simulations, and analyzing the outcomes. Based on the results, the meta-agent makes adjustments and iterates on the design, leading to progressively better agents. This iterative process is crucial because it allows the system to learn from failures and successes, refining agent behavior with each cycle.

Architecture and Process of Automated Design of Agentic Systems

1. Architecture Overview The architecture of the Automated Design of Agentic Systems (ADAS) is built around a meta-agent, which functions as the core component responsible for the design and optimization of individual agents. The meta-agent operates in a loop of continuous improvement, iterating over agent designs and enhancing their capabilities.

2. Key Components

  • Meta-Agent: The central entity that designs, tests, and refines agentic systems. It utilizes a combination of heuristics, machine learning, and optimization techniques to generate and evaluate agents.

  • Agents: These are the entities created by the meta-agent to perform specific tasks. Each agent is designed as a piece of code that can be easily modified and tested by the meta-agent.

  • Environment: The environment is where the agents operate. It could represent a virtual space for coding tasks, scientific simulations, or mathematical problem-solving. The environment provides feedback to the meta-agent about the agent’s performance.

3. The Process Workflow The process can be broken down into the following steps:

  • Step 1: Initialization

    • The meta-agent begins with a set of initial design parameters. These parameters could be inspired by existing agents or completely novel ideas generated by the meta-agent's learning algorithms.

  • Step 2: Agent Design

    • The meta-agent uses these parameters to design an initial agent. The agent’s design is code-based, allowing the meta-agent to manipulate various elements of the agent’s functionality.

  • Step 3: Simulation and Evaluation

    • The newly designed agent is deployed in a simulated environment. The environment is designed to replicate the real-world conditions the agent would face in its target domain. The agent’s performance is evaluated based on predefined metrics.

  • Step 4: Feedback Loop

    • The results from the simulation are fed back to the meta-agent. The meta-agent analyzes the data to determine the agent’s strengths and weaknesses. This feedback informs the next iteration of the design.

  • Step 5: Iterative Refinement

    • Based on the feedback, the meta-agent tweaks the agent’s design and runs a new simulation. This cycle of design, simulation, feedback, and refinement continues until the agent meets or exceeds performance thresholds.

4. Optimization Techniques The meta-agent employs several optimization techniques:

  • Heuristic Search: Utilizes rules of thumb or informed guesses to explore the design space quickly.

  • Machine Learning Models: Predict how changes in the design parameters will impact performance, guiding the meta-agent toward more promising designs.

  • Evolutionary Algorithms: Introduce variations in the design parameters, allowing for the exploration of a wide range of potential solutions.

5. Agent Deployment Once the meta-agent has iteratively refined an agent to an optimal level, the agent can be deployed in real-world applications. The deployment could be for various domains such as software development, scientific research, or complex problem-solving. The architecture allows for easy adaptation of the agent to new tasks by tweaking the initial parameters and running new iterations.

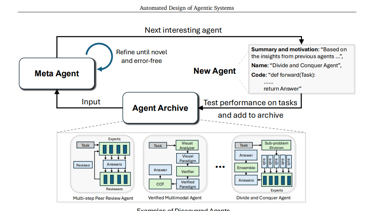

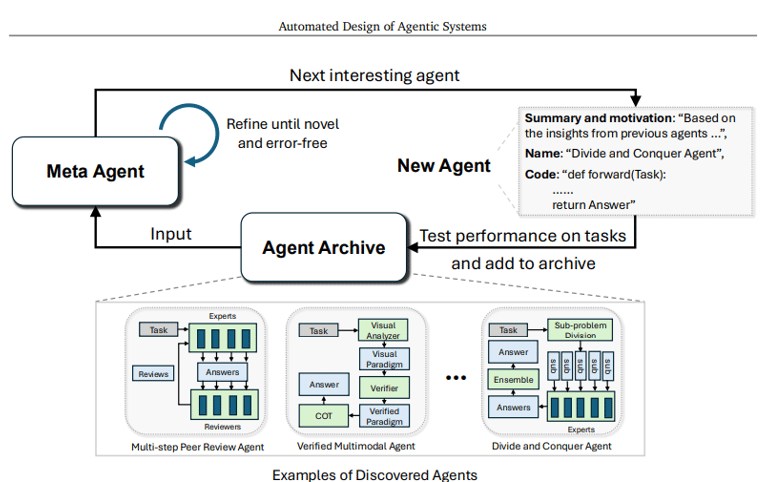

The Meta Agent Search algorithm is a key component of the Automated Design of Agentic Systems (ADAS). It utilizes Foundation Models (FMs) as "meta agents" to iteratively design and refine new agentic systems in code. Here’s how it works:

  1. Core Idea: The meta agent programs new agents using an evolving archive of previous discoveries. It builds on existing code and tools, avoiding the inefficiency of starting from scratch each time.

  2. Framework: The meta agent operates within a simple framework (under 100 lines of code) that provides basic functionalities like querying FMs and formatting prompts. The meta agent’s primary task is to define a ā€œforwardā€ function, which handles the input-output relationship of the agent.

  3. Iterative Process: The meta agent uses open-ended prompts to explore and generate novel agents. It incorporates self-reflection by refining its designs over multiple iterations, focusing on both novelty and correctness. When errors occur, it performs up to three refinements to correct them.

  4. Evaluation and Archiving: Each newly generated agent is evaluated using performance metrics such as success rate or F1 score. The results are stored in an archive, which the meta agent uses to inform future iterations.

  5. Search Efficiency: The meta agent doesn’t just randomly explore the search space; it learns from its past designs and continuously improves, making the search process both effective and efficient.

Architecture and Process

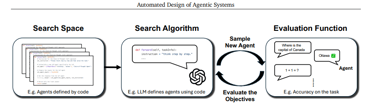

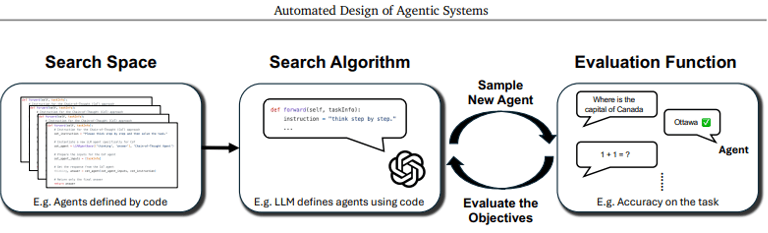

The architecture of Meta Agent Search consists of the following key elements:

  1. Meta Agent: The overarching program that generates and refines agents.

  2. Forward Function: The core logic that defines how each agent operates.

  3. Search Space: The range of all possible agent designs the meta agent can explore.

  4. Search Algorithm: The method by which the meta agent navigates the search space.

  5. Evaluation Function: The criteria used to assess the effectiveness of each agent.

  • Search Space: Defines which agentic systems can be discovered. For example, in PromptBreeder, only text prompts are mutated.

  • Search Algorithm: Explores the search space, balancing between finding new solutions and refining existing ones.

  • Evaluation Function: Evaluates the agents based on performance metrics, guiding the search towards better solutions.

Key Features of the Automated Design Process

  1. Iterative Learning and Improvement: The meta-agent constantly learns from each iteration, identifying what works and what doesn’t. This method ensures that the final agent design is optimized for the specific task it is meant to perform.

  2. Code-Based Agent Definition: Agents are defined through code, making the system flexible and adaptable. This allows the meta-agent to tweak various parameters quickly, testing multiple configurations in a short amount of time.

  3. Domain Versatility: The automated design approach is not restricted to a single domain. The meta-agent can be programmed to create agents for various applications, from scientific research to complex mathematical problem-solving. This versatility opens up endless possibilities for the types of agentic systems that can be developed.

Applications and Implications The automated design of agentic systems could have transformative effects across multiple fields:

  • Software Development: The automated creation of coding agents that can assist or even autonomously build software, reducing the need for human intervention.

  • Scientific Discovery: Agents can be designed to analyze large datasets, generate hypotheses, and even conduct experiments virtually, speeding up the pace of discovery.

  • Mathematical Problem-Solving: The development of agents specialized in solving complex equations or proving theorems, potentially leading to breakthroughs in mathematics.

Challenges and Future Directions While the research presents an exciting new approach to agent design, there are challenges to be addressed:

  1. Scalability: As agentic systems become more complex, ensuring that the meta-agent can handle the increased computational load is critical.

  2. Ethical Considerations: With automated systems that can create increasingly powerful agents, ethical concerns regarding the misuse of such technology must be considered.

  3. Control and Safety: As agents become more autonomous and capable, ensuring that they remain aligned with human values and goals is crucial.

Conclusion
The "Automated Design of Agentic Systems" research introduces a novel methodology that could revolutionize the way AI agents are developed. By shifting from manual design to an automated, meta-agent-driven process, the potential for creating highly efficient and innovative agentic systems is immense. This approach not only speeds up the development process but also opens the door to new types of agents that can outperform their manually designed counterparts. The implications of this research are vast, touching everything from scientific research to real-world applications in various industries.

Research Paper Link :

https://arxiv.org/pdf/2408.08435

Github : https://github.com/ShengranHu/ADAS
